Description

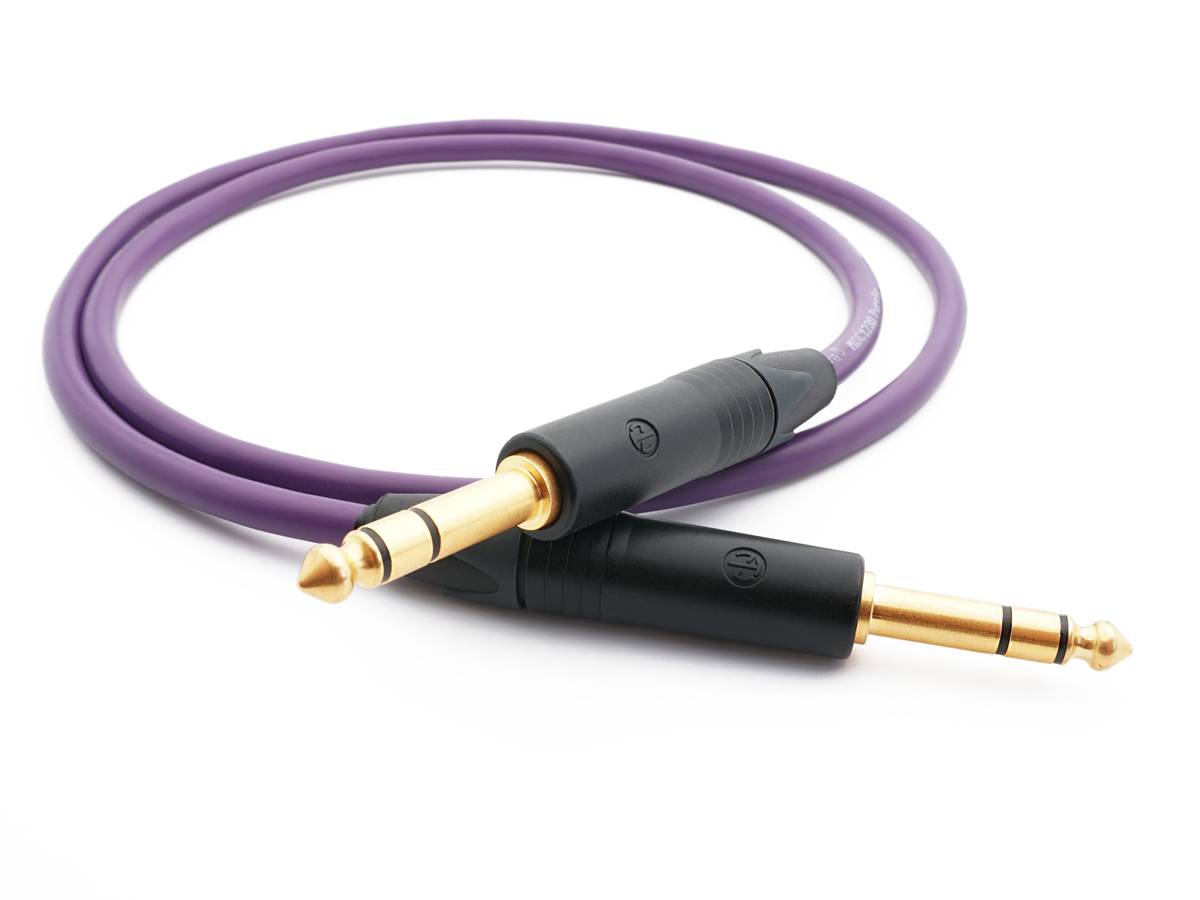

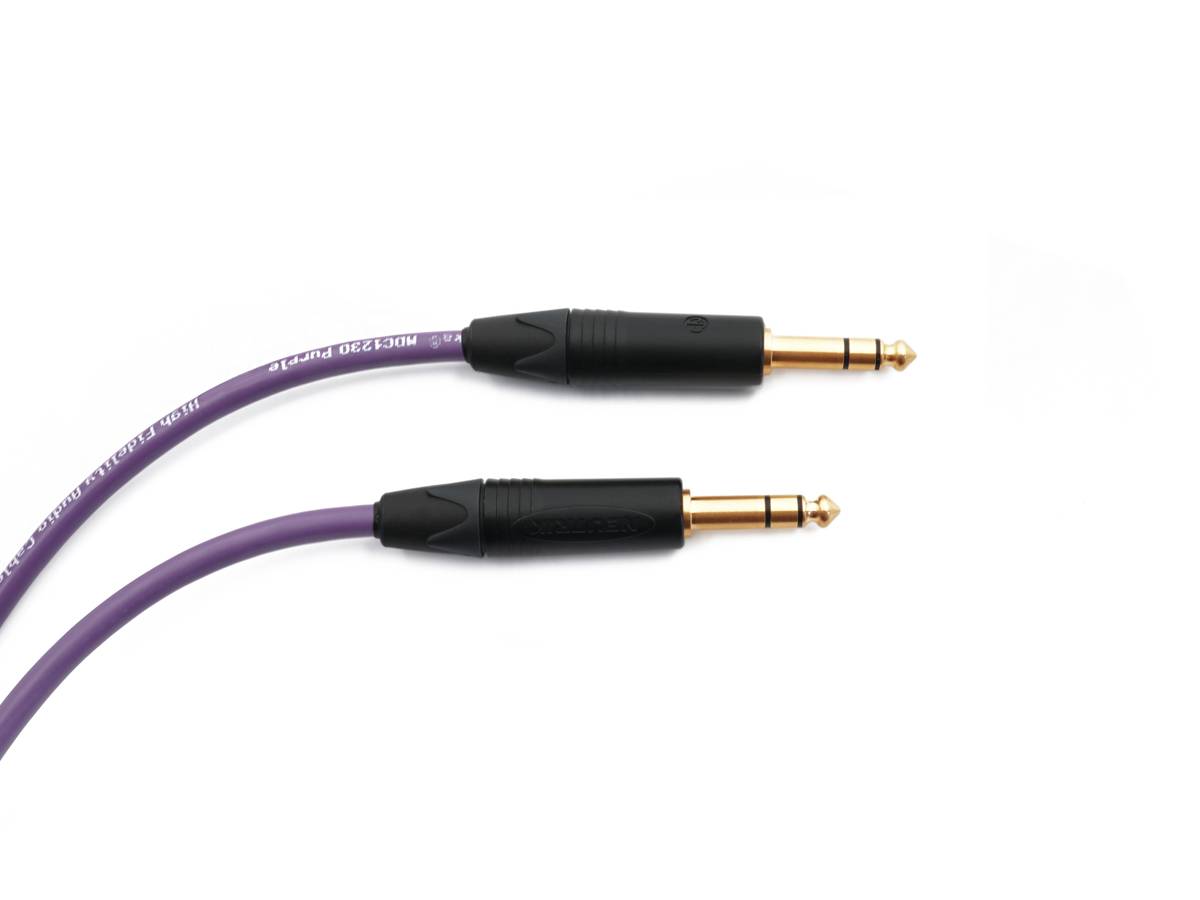

Melodika MDJS170

Melodika MDJS is a stereo cable made of OFC 99.99% oxygen-free copper with a conductor cross-section of 0.35mm2, terminated on both sides with large 6.3mm stereo jack plugs. The Nuetrik plugs are made of a single nickel-plated cast and covered with 24-carat gold. The Melodika MDJS cable is ideal for professional stage and studio use. Available in lengths from 0.5m to 20 meters.

The most important features

• Geometry: Two conductors twisted together, covered with a copper braid
• Conductor: 99.99% OFC Oxygen-Free Copper
• High-quality shielding with a coverage density of over 99% guarantee excellent protection against electromagnetic interference
• Working conductors resistance: 47.6Ohm / km
• Screen resistance: 13.4Ohm / km
• Core / Core capacity: 55 pF / mt
• Screen conductor capacity: 109 pF / mt
• Two cores with a thickness of 0.35mm2
• Very durable Nuetrik plugs, designed for 10,000 switching cycles
• Braid coverage ratio: 99%
• Reliably and precisely made

Price for 1 pc.

Product is new, in original packaging.

Functionality

Specifications

Length:	17m
Gauge:	2x0.35mm2
Quality: Why copper purity is so important? The signal which is running through the guide should encounter on its way as little obstructions as possible. In case of low purity copper the amount of impurities which must be bypass is large. Then we can say that the signal has to go through a real slalom. In the purified copper, electrons run straight to the goal, so the sound is not distorted. Moreover, there is another argument. Copper impurities include oxygen atoms. They cause oxidation. Produced copper oxide which is much weaker conductor than the proper copper. In this way the conductivity deteriorates which obviously affects the sound. Source: information service RMS.pl	Oxygen Free Copper: 99.99%
Shielding: Shielding is something like a barrier to electromagnetic interference. If the guide has more layers of shielding or the shielding is thicker, it's better. Source: RMS.pl	Yes
Connectors:	Jack 6.3mm, made of a single nickel-plated cast
Shape:	Round
Directionality:	No
Diameter (cable thickness):	6mm
Construction:	Twisted
Cable type::	Instrumental
Insulation:	PE, PVC coating
Connectors:	Plug-plug
Connector type:	Straight
OTHERS:	Working conductors resistance: 47.6Ohm / km
::	screen resistance: 13.4Ohm / km
::	Core / core capacity - 55 pF / mt
::	Kapacita vodiče stínění - 109 pF / mt
::	24K gold-plated Neutrik plugs
Warranty:	5 years
GPSR - informacje:	Comapny name: RAFKO Rafał Koc Address line Hetmańska 33B 15-727 Białystok, e-mail: melodika@melodika.pl Phone: 857479757

About brand

Melodika is a Polish brand that specializes in producing high-quality cables, hi-fi speakers, and installation speakers. Quality of Melodika products is a response to the expectations of customers who are looking for products based on proven solutions and at the same time made from above-average quality materials with due diligence.

Melodika was created out of genuine passion in 2010 by the team of music lovers but also experts with the background in selling audio-video goods and providing professional audiovisual installations. With the guiding principle to never compromise on sound, we decided to produce top quality solutions at the most accessible, reasonable price level. Thus, our brand's design and production philosophy are always based on effective solutions tested in practice. No audiovoodoo, just audio equipment that we, ourselves would like to buy.

Melodika products have been recognized with many awards over the years from renowned Hi-Fi press in Poland and Europe.
