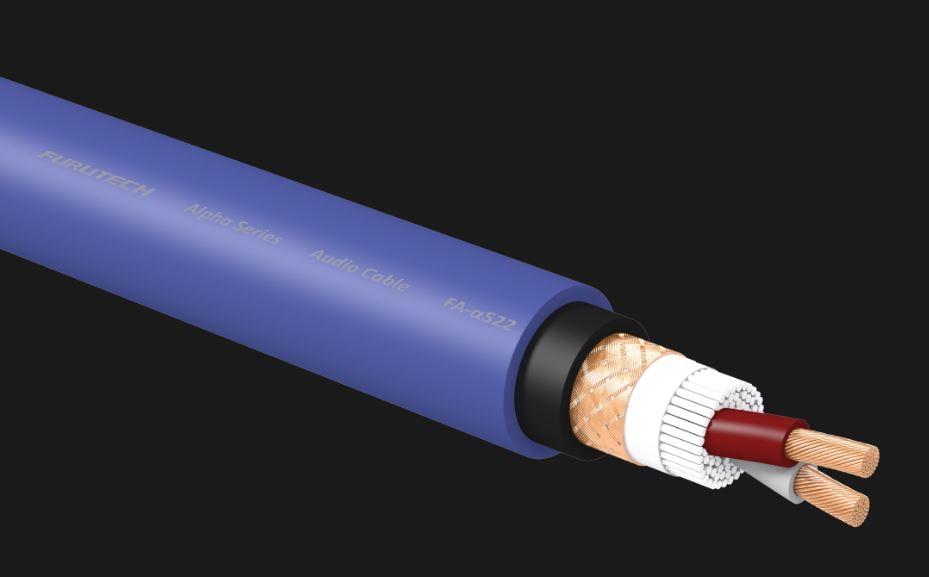

Furutech FA-Alpha S22 (FA Alpha)

The highest quality signal cable with a symmetrical construction. The material used is an AlphaOCC conductor (cryogenically treated), Conductor insulation  polypropylene, paper, cotton yarn, PVC externally. Outer diameter about 9 mm, color purple.

Technical specification:

• Conductor Material: α(Alpha) OCC
• Construction（pcs／mm): 60pcs / ψ0.18 mm
• Insulation Material: Audio grade PP (Red, White)
• Diameter: 2.6mm
• Twisting Method : 2 Cores Twisted Together
• Filler Material: Audio grade damping cotton
• Barrier Layer Material: Stabilizer Paper Tape (Wrap)
• Shield Material: ψ0.12mm α (Alpha) Conductor wire braid
• Inner Sheath Material: Audio grade flexible PVC (Black) Incorporating damping carbon particles
• Diameter: 7.0mm
• Sheath Material: Audio grade Flexible PVC (Purple blue)
• Nom. Thickness: 1.0mm
• Overall Diameter Approx.: 9.0mm
• Max. Conductor Resistance: Ohm／km 13.2 (JISC3005 6 20℃)
• Min. Insulation Resistance MOhm ‧ km >100 (JISC3005 9.1 20℃)
• Capacitance: PF/M 84.1 at 1KHz
• Impedance: Ohm 37.7 at 10 MHz
• Inductance: uH/M 1.55 at 1KHz
• Dielectric Strength: V／1 min. AC 1000 (JISC3005 8)

Price per meter. Product is new, originally packed.
Possibility to buy a set of banana plugs or spades.

Functionality

Kable S-Video to to jeden ze starszych standardów obecnych na rynku. W dalszym ciągu wykorzystywany do połączeń odtwarzaczy DVD, magnetowidów oraz kamer video z telewizorami oraz komputerów i laptopów ze starszymi telewizorami. S-Video oferuje lepszy jakościowo obraz od standardu Composite.

Standard S-Video jest kompatybilny ze standardem Composite – wystarczy użyć przejściówki z wbudowanym konwerterem.

Specifications

Type:	audio/microphone
Length:	per meter
Quality: Why copper purity is so important? The signal which is running through the guide should encounter on its way as little obstructions as possible. In case of low purity copper the amount of impurities which must be bypass is large. Then we can say that the signal has to go through a real slalom. In the purified copper, electrons run straight to the goal, so the sound is not distorted. Moreover, there is another argument. Copper impurities include oxygen atoms. They cause oxidation. Produced copper oxide which is much weaker conductor than the proper copper. In this way the conductivity deteriorates which obviously affects the sound. Source: information service RMS.pl	OCC Copper
Shielding: Shielding is something like a barrier to electromagnetic interference. If the guide has more layers of shielding or the shielding is thicker, it's better. Source: RMS.pl	Double OCC copper braid
Shape:	Round
Diameter (cable thickness):	9mm
Cable type::	Microphone cable
Insulation:	Flexible audio grade PVC
Resistance:	13,2 Ohm/km
Impedance:	38 Ohm
Warranty:	24 months
