Description

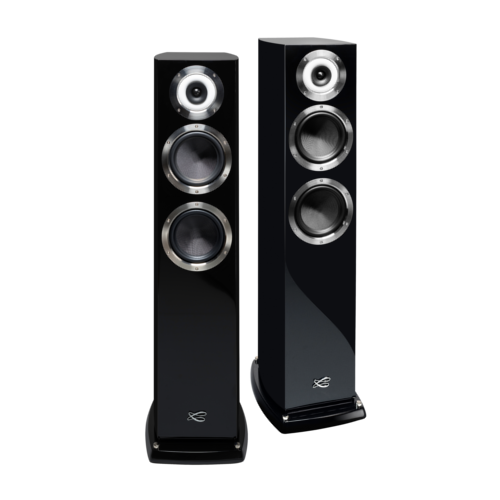

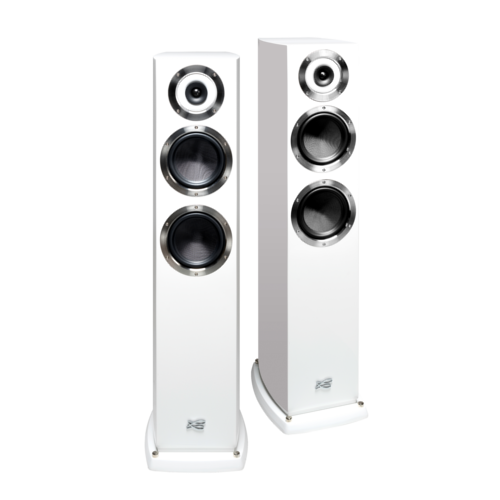

Cabasse Murano Alto

The heart of the 3-way co-axial TC23, assembled and quality assured in our French workshops and which is fitted to the flagship L’Océan, the BC13 guarantees a faithful straightforward tonal balance without any auditory strain, for a deep and incredibly realistic soundstage. We have fitted it with a new aluminium wave guide specifically designed for optimal output with the Murano bass driver.

The new 17ND36 bass driver is specifically developed for Murano speakers. In order to deliver deep yet tight and fast bass from a small volume our engineers have miniaturised the concept of La Sphère’s 55cm woofer. The concave honeycomb membrane offers great rigidity and excellent damping which enables a large excursion without deformation. Guided by a long voice coil in the 45mm deep air gap of a 4-kilogram oversized motor, this driver gives the Murano Alto’s bass the purity and strength of crystal.

Three long, curved and flared port tubes supply a stunning boost to low frequencies, with extension and wealth. The option to seal one port of each speaker provides the choice between maximum bass boost or maximum extension, to suit the room acoustics and musical taste.

Product is new originally packed.

Functionality

Kolumny stereo dzielą się na podłogowe oraz podstawkowe. Dobór wielkości kolumn zależy przede wszystkim od wielkości pomieszczenia. W pomieszczeniach do 10m kw warto dobierać kolumny podstawkowe. W przypadku pomieszczeń do 20m kw sprawdzą się zarówno większe podstawkowe jak i podłogowe. W pomieszczeniach o powierzchni 30m kw i więcej polecamy większe kolumny podłogowe.

Zdecydowana większość kolumn produkowana jest w ramach jednej linii, na którą składają się kolumny podłogowe, podstawkowe (często z uchwytami do podwieszania w komplecie) oraz kolumna centralna – stosowana do kina domowego. Uzupełnieniem powyższych produktów są subwoofery, które podobnie jak kolumny stereo mogą w znaczący sposób różnić się nawet w tym samym przedziale cenowym.

Zazwyczaj w ramach systemu stereo istnieje możliwość dołączenia subwoofera i stworzenia zestawu 2.1, który może być także traktowany jako podstawowe kino domowe z możliwością rozszerzenia o kolumnę centralną oraz kolumny podstawkowe – jako tylne głośniki efektowe.

Dobór kolumn do wzmacniacza powinien opierać się na 4 czynnikach:

- impedancji kolumn i wzmacniacza

- mocy kolumn i wzmacniacza

- barwie dźwięku kolumn i wzmacniacza

- preferencjach muzycznych klienta.

Aby jak najlepiej dobrać kolumny do wzmacniacza skontaktuj się z naszą obsługą.

Specifications

Construction: Information that the loudspeaker is 2, 2.5 or 3way, mostly coincides with the number of speakers, but it doesn't have to be this way. You can find speakers working synchronously in one track and reproducing together the same range band. Most popular solutions are, where the two midwoofers, midrange or woofers operate in parallel in one track In a large generalization, it is about bandwidth allocation for individual speakers in the loudspeakers.	3-Way
Construction: Loudspeaker transmitters need amplifier signal to operate. Most of the loudspeakers have passive constructions that are connected with external amplifiers via cables. Some speaker sets have a built-in amplifier, usually for the low frequency section. Then only mid- and tweeter transmitters need to be powered to the amplifier. Such constructions are known as loudspeaker with built-in powered subwoofer. Active loudspeakers are entirely powered by built-in amplifier. Therefore, they only need source signal. Active loudspeakers are mostly computer speakers, subwoofers, wireless Bluetooth speakers or stage speakers. Source: RMS.pl information service	Passive (amplifier required)
Drivers: Type of drivers (speakers) which have been used in the device. The most popular are dynamic drivers, but in advanced constructions some producents - like HiFiMAN, Martin Logan, Focal etc. - there are also other types, like coaxial, electrostatic or - in IEM - armature drivers. Source: RMS.pl information service	Dynamic Coaxial
Tweeters:	1xBC13 coaxial
Midrange:	1x 6.9 inches (170mm) 17ND36 with concave honeycomb membrane
Woofer:	1x 6.9 inches (170mm) 17ND36 with concave honeycomb membrane
Bas-reflex: Presence and type of bass-reflex port. It is ventilating hole in the housing of speaker, through which emerges the part of acoustic pressure. It results in frequency response of low frequencies and lower non-linear distortions. If the bass-reflex hole is placed on the back of speaker, it should be placed approximately 1m from the wall for free air propagation. Source: RMS.pl information service	Back
Passive membrane: The speaker without voice coil, moving under the influence of acoustic pressure inside housing during the work of low-frequencies driver. The alternative way to optimize bass response is bass-reflex port. Source: RMS.pl information service	NO
Impedance:	8 Ohm
Crossover: Border frequency, at which crossover transmits signal between drivers. Source: RMS.pl information service	800/3.500 Hz
Sensitivity: Specifies the sound level at a distance of 1m from the speaker, measured at bringing specific (standardized) of the signal at 2.83V. The higher the efficiency, the louder will the column with the same signal from the amplifier. Source: RMS.pl information service	89dB
Power (RMS):	175W
Handles included:	NO
Frequency Response:	32/38 – 24.000 Hz
OTHERS:	option to seal one bass-reflex of each speaker to choose between maximum bass boost or maximum extension
::	Minimum impedance 3.4 Ohms
Height:	102.6cm
Width:	27.5cm
Depth:	37.5cm
Weight:	28kg
Surround:	Classic
Warranty:	24 months
GPSR - informacje:	Brand Comapny name: Cabasse Address line 210 rue René Descartes BP10 29280 Plouzané, France e-mail: gohargabrielyan@cabasse.com Podmiot odpowiedzialny Comapny name: Cabasse e-mail: audiocenter@audiocenter.pl

About brand

Cabasse is a French audio manufacturer founded by Georges Cabasse in 1950. It is mainly known for its home loudspeakers but has also produced professional audio speakers for studio recording or sound reinforcement in theatres and power amplifiers.
