Brand: Lumin Lumin
Internet Radio: Yes
USB DAC: No
Customer ratings:
Pros:
Cons:

Description

Lumin U1

The Lumin U1 digital transport is a purely high-end digital streaming platform ideal for those who already own a high-end DAC, or have a preferred DAC of their choice. The U1 is void of any analogue circuitry which could interfere with the digital signal. The U1 provides five different digital outputs.

Not only will the U1 stream music stored anywhere on your network to your connected hifi system via UPnP, it will also give you to access to Spotify, QOBUZ, and TIDAL streaming services - the latter providing full MQA compatibility - as well as thousands of internet radio stations via TuneIn. Fully Roon compatible, the U1 is able to present you with a wealth of artist and album information at your fingertips.

AirPlay provides wireless streaming from Apple phones and tablets.

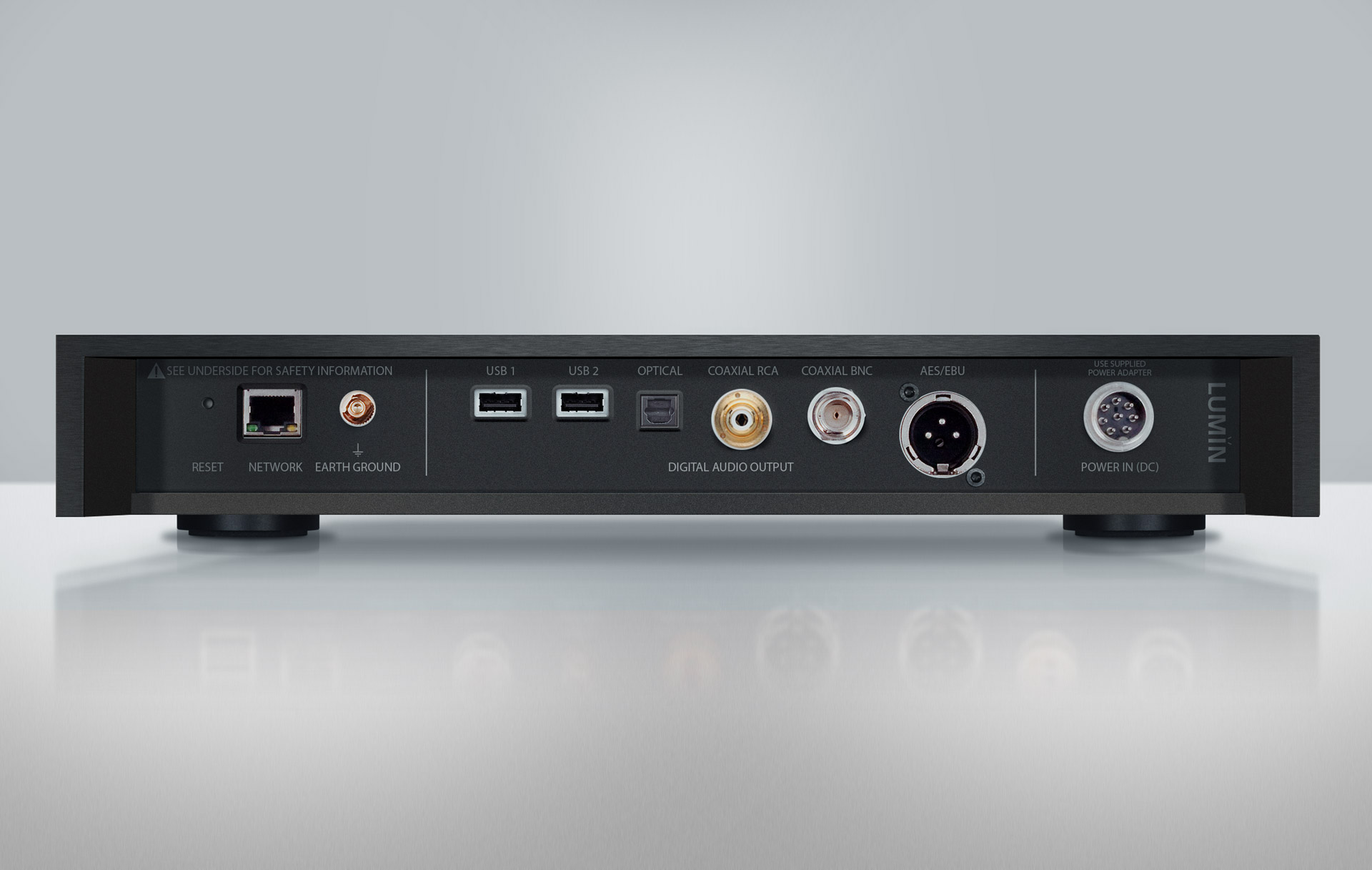

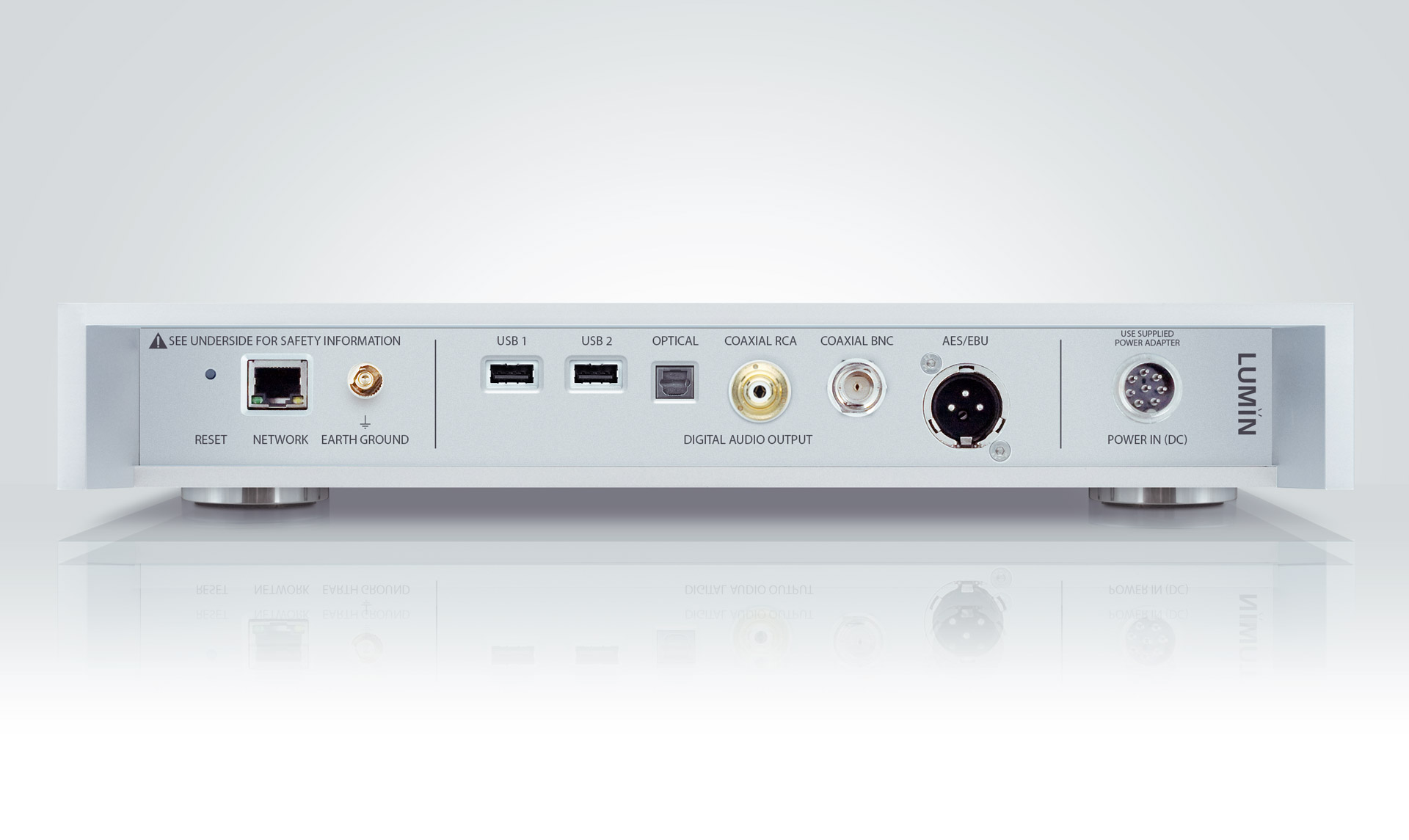

​A BNC coaxial digital output, an optical digital output, and a balanced AES/EBU digital output digital outputs cover PCM up to 24bit/192kHz and DSD at 2.8MHz - two USB digital outputs cover PCM up to 32bit/768kHz, and stereo DSD up to DSD512 at 22.5MHz. The USB connections double up for adding hard drive storage for music collections.

​Volume can be controlled by the connected equipment, or via Lumin's own lossless digital output controllable via the free control app.

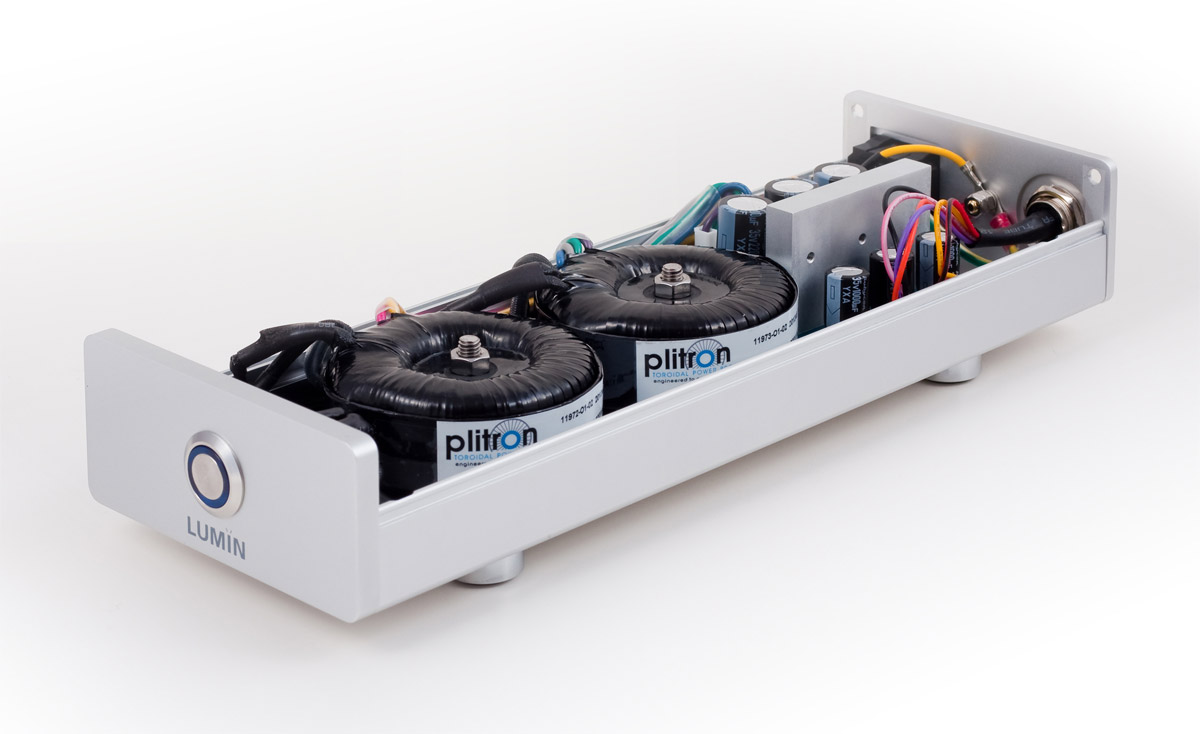

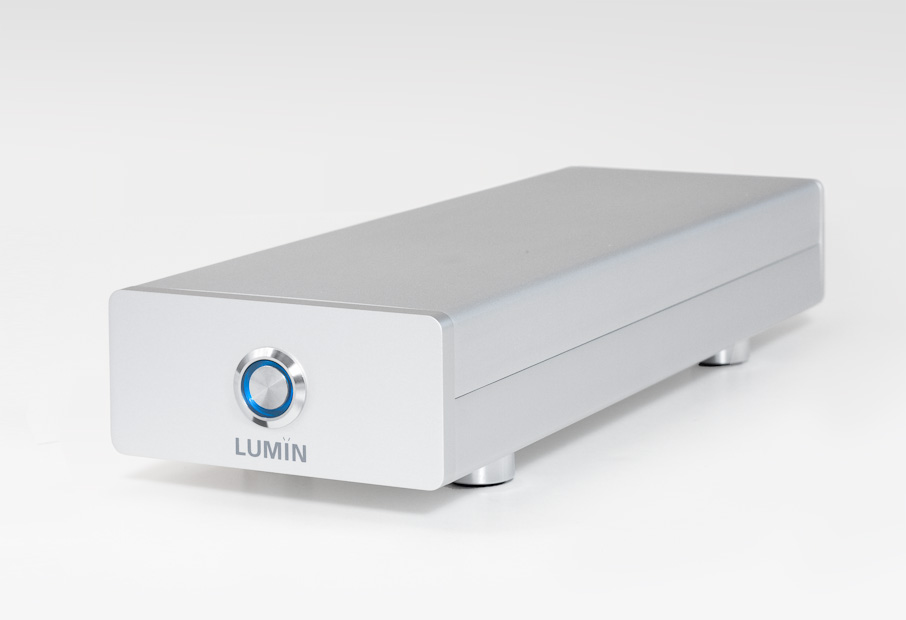

Not only is the Lumin U1 void of analogue circuitry, but also of on board power. An off-board linear power supply is supplied in order to keep the dual toroidal transformers away from the unit, preserving as much as possible the digital signal it is processing.

Main features

  • purely digital streaming transport
  • fully balanced circuit layout
  • 1x Gigabit ethernet input
  • 1x optical digital output [up to 24bit/192kHz]
  • 1x BNC coaxial digital output [up to 24bit/192kHz]
  • 1x AES/EBU balanced digital output [up to 24bit/192kHz]
  • 2x Type B USB digital outputs [up to 32bit/768kHz and DSD up to DSD521 at 22.5MHz]
  • these Type B USB also offer HDD stored music attachment
  • fixed or variable output
  • external PSU using dual toroidal transformers
  • UPnP network streamer
  • AirPlay streaming
  • TuneIn internet radio
  • MQA decoding
  • Roon compatible
  • TIDAL streaming
  • QOBUZ streaming
  • Spotify Connect streaming

Product is new, originally packed.

Functionality

Streaming players allow you to read and decode digital music in the form of compressed, uncompressed files, internet radios and others. The source is usually a network server or a personal computer, communication takes place both through the Ethernet port (via a cable) and wireless Wi-Fi communication.

The overwhelming majority of streaming players have a USB port for flash drives.

The streaming player almost always has a built-in digital-to-analog converter DAC and a set of analog outputs for the amplifier as well as digital, enabling the connection of an independent digital-to-analog converter to further improve the sound quality.

Specifications

USB formats: equal like in ethernet
Ethernet formats:
  • AAC
  • ALAC
  • AIFF
  • FLAC
  • MP3
  • WAV
  • DSD 128 (5.6MHz)
  • DSD 256 (11.2MHz)
  • DSD 512 (22.4MHz)
  • MQA
  • DIFF
  • DSF
  • DoP (DSD over PCM)
AUDIO SECTION: ------
MULTIMEDIA FUNCTIONALITY: ------
Wi-Fi:

Wi-Fi is a technology designed to build local area wireless networks. It allows an electronic device to participate in computer networking in 2.4 GHz USF and 5 GHz SHF ISM radio bands. The standard characterizes relatively long range (up to 120 feet).

Device audio with Wi-Fi can play music sent from Wi-Fi transmitters, like smartphones, tablets or PCs and MACs. Wi-Fi is able to convey audio signal using a losless codec. There is absolutely no loss of audio fidelity. Some devices (e.g. VOCO) may link with musical services, like YouTube.com or Spotify via Wi-Fi.

Source: RMS.pl information service

NO
UPnP:

Universal Plug and Play (UPnP) is P2P type protocol that enable networked hardware devices and software applications to communicate and work together without end user configuration. It's an open architecture. Computer which supports UPnP automatically configures its network interface card and shares informations about its gateway. Thereby compatible devices and network applications may be instantly turned on without additional configuration (except for networks with password).

In AV solutions a main goal of UPnP is interoperability between controllers and devices, e.g. enabling audio files to transmit from a NAS to an AV device without necessity for using control device.

Source: RMS.pl information service

YES
AirPlay:

Apple's own wireless platform, enabling users to transmit digital audio or video content from iPods, iPhons, iPads etc. to other AirPlay supported devices (wireless speakes, AV receivers).

Compared to Bluetooth, AirPlay has the capability of playing acorss a much larger distances between devices. Therefore, AirPlay uses lossless audio compression.

Source: RMS.pl information service

  • AirPlay 1
  • Yes
Bluetooth:

Wireless platform that can be found in extremely wide palette of devices. In audio, it allows to connect between devices and stream music straight from phone to speakers, AV receivers etc.

Compared to AirPlay, Bluetooth-connected devices need to be close proximity (10-15m). Furthermore, it streams in lossy compression, but is also capable of sounding very good, especially with AAC and aptX codecs.

Source: RMS.pl information service

NO
Dedicated application:

Control app avalaiblity on smartphones and tablets with Androd, iOS (Apple devices: iPhone, iPad, iPod etc.) or other (e.g. Windows Phone).

Source: RMS.pl information service

  • Android
  • iOS (Apple iPhone/iPod/iPad)
Gapless:

Uninterrupted playback of audio tracks, without gaps between them. Particularly useful with concerts, concept albums, electronic music or classical music.

Source: RMS.pl information service

YES
Internet Radio:

Avalaiblity to play digital internet radio, transmitting streaming auditions.

Source: RMS.pl information service

Yes
Music services:

Services, applications and streamers support. Thanks to that feature, you can play music e.g. from Spotify with AV receiver or streaming player.

Source: RMS.pl information service

  • TuneIN
  • Qobuz
  • Tidal
  • Spotify Connect
  • TIDAL Connect
USB output:
  • YES
  • 2
USB DAC:

Allows to stream sound from your computer without sound card.

Source: information service RMS.PL

No
USB Input (mass storage mode):

Devices and file systems supported by USB port.

Source: RMS.pl information service

  • Pendrive FAT16/32
  • Hard drive FAT16/32
  • Pendrive NTFS
  • Hard drive NTFS
INPUT/OUTPUT: ------
Optical outputs:

Number of optical outputs - TOSLINK interfaces which are sending digital audio signal (S/PDIF) by optical fiber cable.

Source: RMSStore.eu information service

1
Coaxial outputs:

Number of coaxial outputs.

Coaxial (concentric) cables send digital signal audio (S/PDIF). They are characterized by good electrical properties with RCA connectors and 75 Ohm impedance.

Source: RMS.pl information service

1
Ethernet/LAN input:

Ethernet input allows to connect to device LAN cable from router, computer or server. It significantly raises device capabilities, enlarging it by playing files through DLNA, supporting network apps or softwarte actualizations.

Source: RMS.pl information service

YES
Trigger:

Trigger is used to remote start-up connected devices by sending current signal (typically 12V) from main device. Then, after turning it on (eg. AV receiver) other devices (eg. Blu-ray player, phono preamp, etc.) start-up automatically.

Source: RMS.pl information service

NO
OTHERS: DIGITAL OUTPUT STAGE, USB: DSD512 22.5MHz, 1-bit, Stereo PCM 44.1–768kHz, 16–32-bit, Stereo OPTICAL, COAXIAL RCA, COAXIAL BNC & AES/EBU: DSD (DoP, DSD over PCM) 2.8MHz, 1-bit PCM 44.1kHz–192kHz, 16–24-bit
:: UPSAMPLING RATES & BIT DEPTHS: DSD128 upsampling option for all files PCM 384kHz upsampling option for all files
Power supply: External dual-toroidal Available in 240V and 110V versions
Height: 60mm, PSU: 55mm
Width: 35cm, PSU: 10cm
Depth: 34.5cm, PSU: 31.5cm
Weight: 8kg, PSU: 2kg
Warranty: 24 months
Google Chromecast (Google Cast): NO
Roon:
  • RoonReady
  • Yes
AES/EBU output: 1
BNC outputs: 1

About brand

Price:

10855 EUR 10,855
